How do I add image hotspots in Elementor?

Drag Elementor's HTML widget into a column and paste the responsive iframe snippet from Interactive Image. The hotspots render live on the front end with no plugin, shortcode, or custom CSS.

Elementor Pro has an Image Hotspot widget — why use this instead?

Elementor's widget is fine for a couple of simple tooltips. It stores the hotspots inside that one page, so they can't be reused elsewhere, the cards are limited to short text, and re-authoring them on another page or another site means starting over. An Interactive Image embed is one hosted asset you can drop into any page, site, or platform, with images, video, and CTA buttons in each card.

Do I need Elementor Pro?

No. The HTML widget ships with Elementor Free, so the embed works on the free version.

Why does the embed look cut off inside my section?

The section or column has a fixed minimum height. Set it back to auto — the snippet's padding-based wrapper computes the correct height from the width and your image's aspect ratio.

It shows in the editor but not on the published page

That's almost always an optimisation plugin. Exclude the page from HTML minification and lazy-load-iframe rules in WP Rocket, LiteSpeed, Autoptimize, or Perfmatters, then clear the cache.

Will it work inside an Elementor popup or accordion?

Yes. Because hotspot positions are percentages and the embed measures its own rendered box, it re-lays out correctly when a popup opens or an accordion panel expands.

Can I use it in an Elementor loop or template?

Yes, though a template repeats the same embed on every item. For per-post interactive images, put the HTML widget in the single-post template only where you want it, or paste the snippet into the post content itself.

Does it slow the page down?

The embed is a lazy-loaded iframe, so it doesn't block your page render and only fetches when it scrolls near the viewport. Your Elementor page's own CSS and JS are unaffected.

Can I edit the hotspots without touching WordPress?

Yes. Edit and save in the Interactive Image editor and every embed of that image updates — you never re-paste the snippet unless the image's aspect ratio changed.

For Elementor

Image hotspots in Elementor, from one HTML widget.

Build the interactive image once, paste one snippet into Elementor's HTML widget, and reuse the same asset on every page and site you own.

Start free See the live editor

Free forever plan · No credit card · Works in Wix, Webflow, WordPress, Shopify, Squarespace

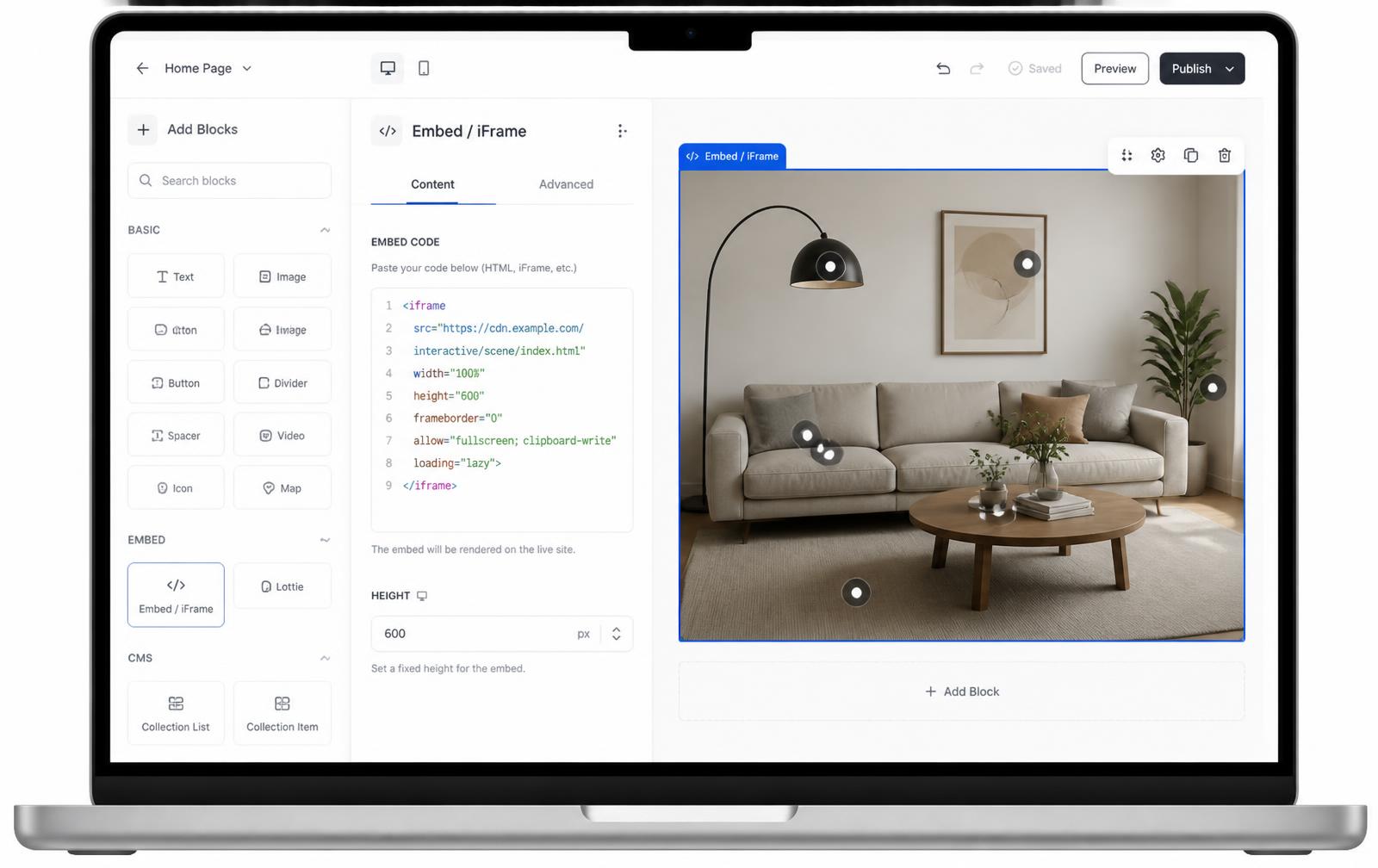

Elementor editor with an HTML widget selected and an interactive image iframe snippet pasted in — One HTML widget, one snippet — no plugin, no shortcode, no custom CSS.

Works on Elementor Free

The HTML widget is core Elementor. No Pro licence and no add-on required.

Reusable asset

The same embed drops into any page, template, popup, or another site entirely.

Responsive by default

Percentage hotspots and a ratio-based wrapper keep everything aligned at every breakpoint.

What you get

Paste into the HTML widget — nothing else to configure
Cards hold a title, description, image, video, and CTA link
Edits propagate to every page using the embed
Lazy-loaded iframe, so page speed is unaffected
Works inside popups, tabs, accordions, and loop templates

Elementor's hotspot widget versus a hosted embed

Capability	Elementor Pro hotspots	Interactive Image embed
Where hotspots live	Inside that one page's layout	A hosted asset reusable anywhere
Card content	Short tooltip text	Title, description, image, video, CTA
Licence needed	Elementor Pro	Works on Elementor Free
Reuse on a second site	Re-author, or copy the template	Paste the same snippet
Who can edit it	Anyone with page-builder access	Anyone with editor access, no WordPress login
Migrating off Elementor	Hotspots don't come with you	Snippet works on the new platform

Fair trade-off: Elementor's widget inherits your global theme styles automatically, while the embed is styled in the Interactive Image editor. If matching brand colours exactly matters, set the marker colour and card text size there once and every embed follows.

Caching, minification, and the usual WordPress suspects

Nine times out of ten an embed that works in the Elementor editor but not on the live page is a performance plugin. In order of likelihood:

HTML minification mangling the inline style attributes in the wrapper div. Exclude the page.
Iframe lazy-load rules that replace thesrc with a placeholder attribute the browser never restores. Disable for this page.
Page cache serving the version from before you added the widget. Purge after publishing.
A security plugin or CSP header blocking third-party frames. Allow interactiveimage.com in frame-src.

If you're not on Elementor

The same snippet works everywhere. There are step-by-step guides for WordPress core blocks, Wix, Webflow, Squarespace, and Shopify. For the markup-level alternatives, see the CSS image map approach.

Setup at a glance

Elementor · HTML widget inside any Elementor section

Time: About 5 minutes
Requirement: Elementor Free or Pro on self-hosted WordPress

Widget: HTML
Elementor plan: Free or Pro
Shortcode needed: None

Step by step

How to add an interactive image to Elementor

Five steps, no developer. Everything below happens once — after that you edit hotspots in Interactive Image and your Elementor page updates on its own.

01
Upload your image
Create the interactive image and upload the visual you want to annotate — a product render, floor plan, or diagram.
02
Add hotspots and cards
Drop a dot on each detail and fill in titles, descriptions, images, and CTA links.

Copy the responsive iframe

Copy the snippet from the Embed panel. No plugin or shortcode is needed — it's plain HTML.

<div style="position:relative;width:100%;padding-top:56.25%">
  <iframe src="https://interactiveimage.com/embed/YOUR-ID"
    style="position:absolute;inset:0;width:100%;height:100%;border:0"
    scrolling="no" loading="lazy"></iframe>
</div>

The Embed panel showing the responsive iframe snippet and a copy button

04
Drag in an HTML widget
In the Elementor editor, search the widget panel for "HTML", drag it into your column, and paste the snippet into the HTML Code field.
05
Set the container width and publish
Give the parent column 100% width and no fixed height, then Update. Check the tablet and mobile views with Elementor's responsive toggles.

Troubleshooting

Fixes for the Elementor issues people hit

Elementor's Image Hotspot widget vs this embed

Elementor Pro's hotspot widget works, but the hotspots live inside that one page — you can't reuse them elsewhere, and the tooltips are limited. An Interactive Image embed is reusable across pages and sites and supports media and CTAs in the card.

The embed is cut off inside a section with a fixed height

Remove the section's minimum height or set it to auto. The padding-based wrapper in the snippet sizes the iframe from its width.

It works in the editor but not on the live page

A caching or optimization plugin is stripping or deferring the iframe. Exclude the page from HTML minification and clear the cache.

The embed looks cropped or has scrollbars

The iframe height doesn't match the image aspect ratio. Copy a fresh snippet from the Embed panel — it bakes the exact ratio into a padding-based wrapper — or set the iframe height to width ÷ aspect ratio.

Hotspots look slightly offset from the artwork

That happens when the container letterboxes the image. Interactive Image measures the rendered image box, so hotspots stay glued to the artwork — just make sure you didn't force a fixed height that differs from the image ratio.

Changes aren't showing on the live site

Save in the editor, then hard-refresh the published page. The embed always renders the latest saved version — you never need to re-paste the snippet unless the aspect ratio changed.
